Dynamic Torque Transducer,Non-Contact Dynamic Torque Sensor DST-03

विवरण

1, Applications: DTS series dynamic torque sensor is an accurate measuring device for torque and mechanical power consumption. Mainly applied in 1.1 Electromotor, Engine motor, internal-combustion engine and other rotating equipment. 1.2 Fan, water pump, torque wrench 1.3 Train, auto mobile, tractor, airplane, ship, mining machine 1.4 Water recycling system 1.5 Viscometer 1.6 Process industry

उत्पाद वर्गीकरण

Torque Sensor/ Torque Transducer

Share to

जांच भेजें

विवरण

तकनीकी पैरामीटर

Dynamic Torque Transducer DTS-03 with self dsiplay, display Torque Range , Speed .

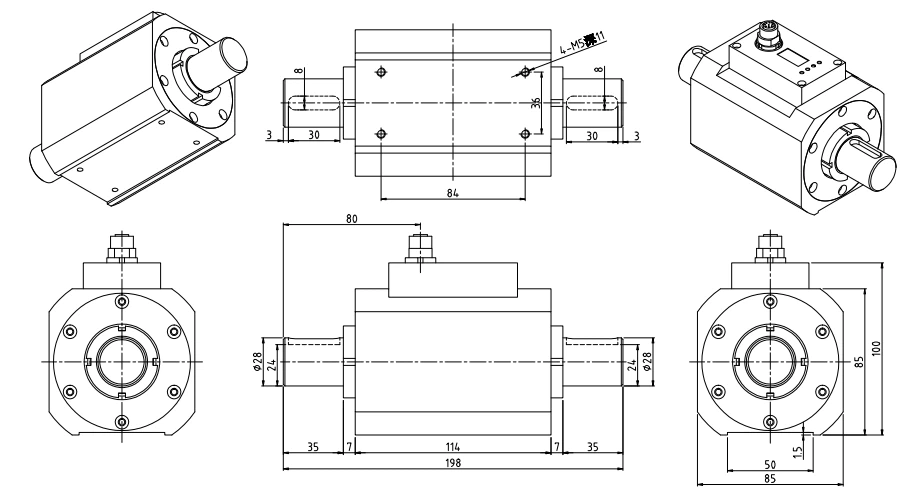

◆ Dimensions:

5-100Nm

DTS-03

200-500Nm

DTS-03B

◆ Features and Applications

Small torque sensor is a new product developed by our company on the basis of the special technology of strain bridge, which is suitable for all kinds of torque measurement occasions with small volume and high speed.

The product output 5~15kHz frequency signal or 4~20mA current signal, suitable for long-distance transmission.

This product is small in size, easy to use and install, strong signal anti-interference ability

The product is non-contact type, no wear, the highest speed of 8000RPM, suitable for long-term high-speed rotation conditions

◆ Technical parameter

Index	Parameter specifications
Range	3,5,10,20,30,50,100Nm 500Nm,1000Nm
Power Supply Voltage	± 15V DC ( frequency signal output), 24V DC ( voltage or current signal output)
Torque signal	5~15Khz (amplitude of 12V, 0.0.10kHz), 4~20mA, 1~5V, 0-10V (optional)
Range of speeds	0~1000,3000,6000,8000 rpm
accuracy	±0.25%、±0.5%
Year stability	0.25% / year
insulation resistance	≥2000MΩ(100VDC)
ambient temperature	-20~60℃
relative humidity	0～90%RH
overload capacity	150%
frequency response	1ms
